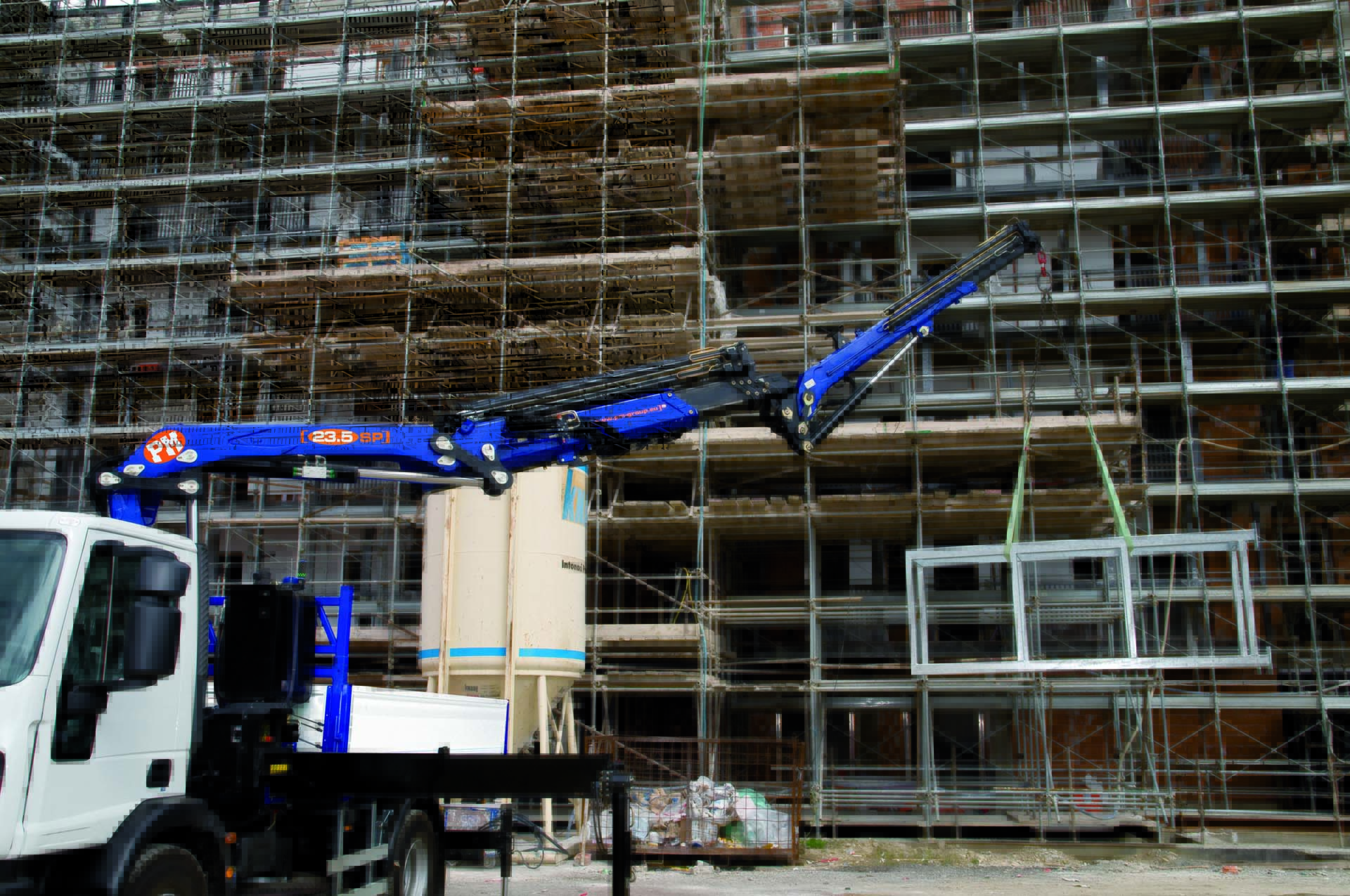

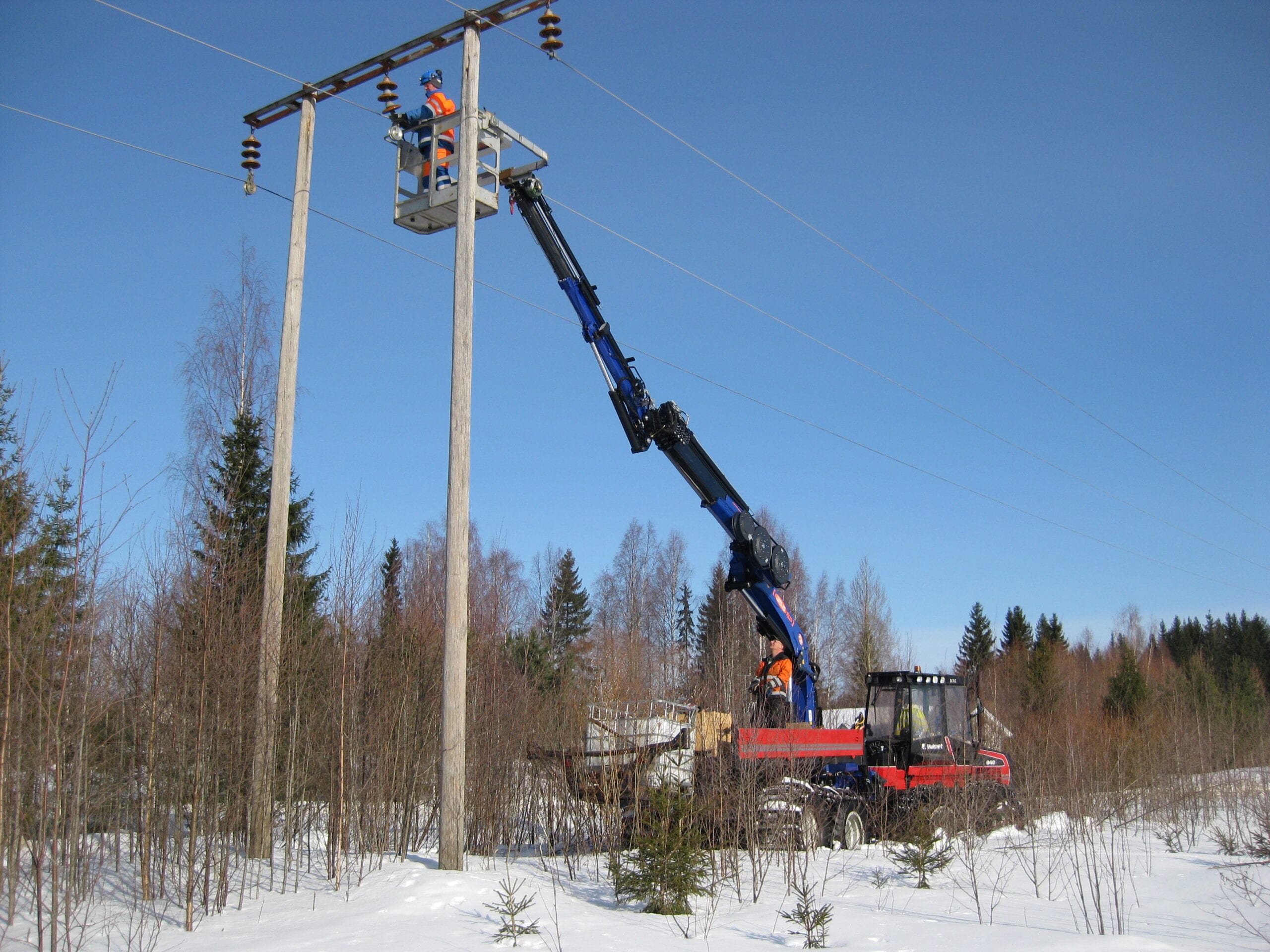

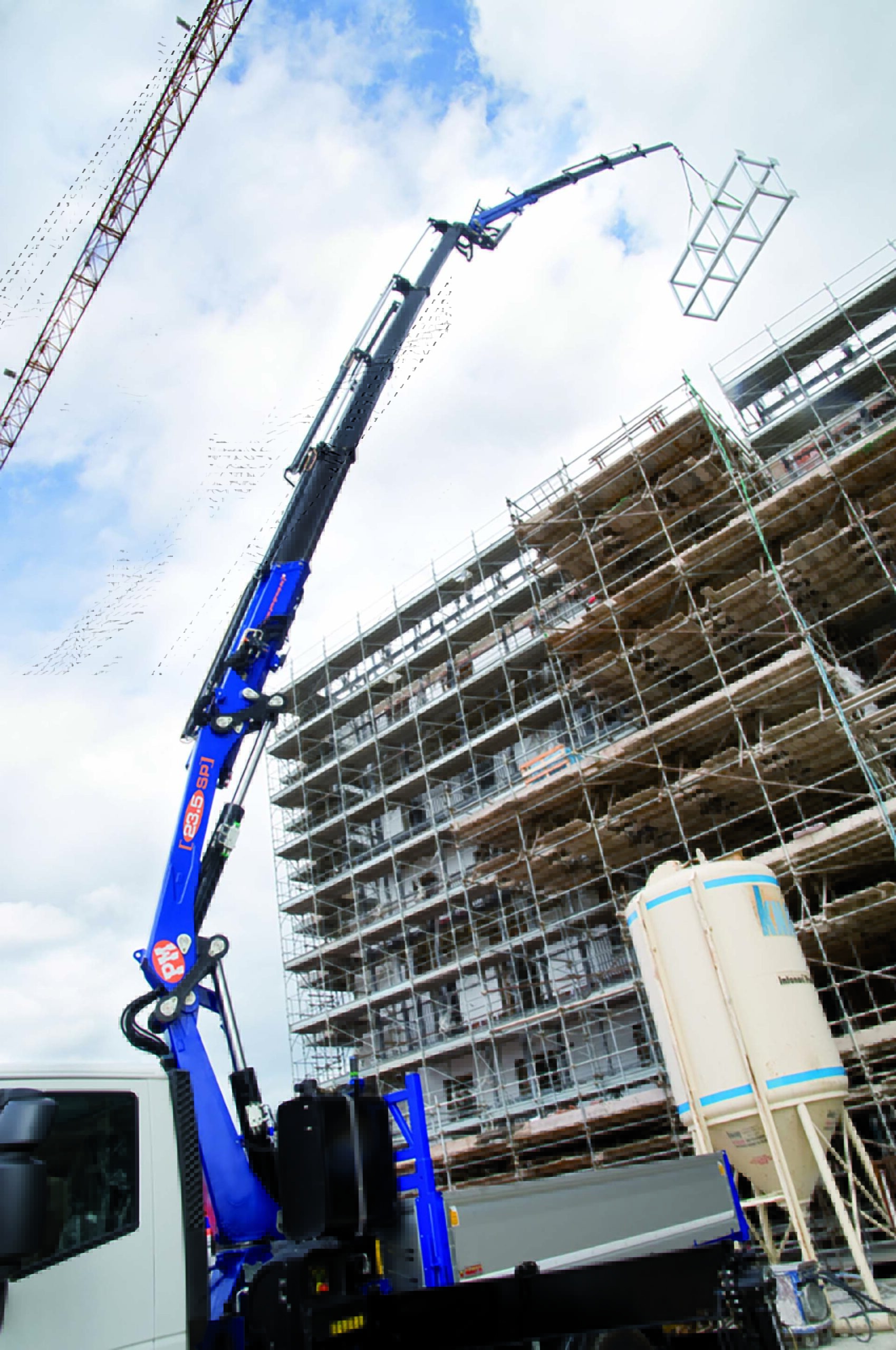

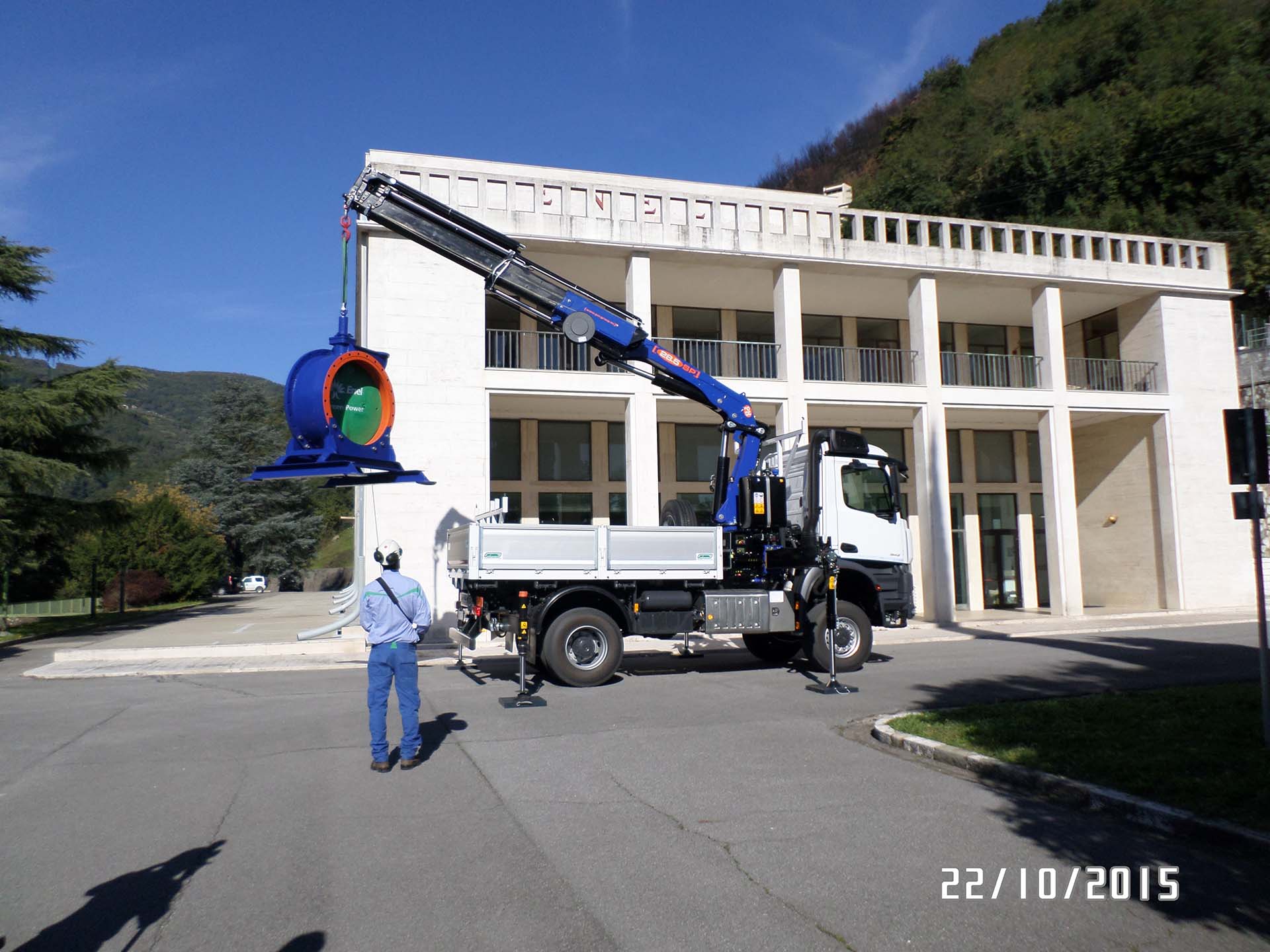

PM 23.5 SP Gold

This is the top series of medium-tonnage cranes in terms of outreach, maneuverability, power and standard equipment. Thanks to an innovative design, the 23.5SP series combines low weight with a considerable outreach; in fact, configurations of the base crane with up to 7 extensions are available. Its articulation based on the exclusive PM linkage system guarantees extremely constant lifting curves and high performance in all operating configurations. The Plus system not only increases lifting power but also guarantees perfect control of crane dynamics. The Power Tronic system with which it is equipped allows the operator to control the crane in real time, in all operating conditions. Perfect load control is guaranteed by the 15° negative overstroke on the secondary boom. Type 1, 3 and 4 Interlock stability systems can be installed on this model. An LC version is also available, with a hydraulically retractable first boom, which facilitates cumbersome and heavy short-range movements, while also optimizing the loading positions under the column. In the version with 7 hydraulic extensions it can reach a maximum horizontal outreach of 19.05 m and a maximum vertical outreach of 22.95 m. Configurations with a jib with a negative angle of 20° with 2, 3 and 4 extensions are available.

GOLD

– Cranes equipped with connecting rods on the joints

– Multi-function radio control

– Compensated proportional control valve block

– Heat exchanger

– PM Power Tronic electronic management system (excluding models PM 10.5 SP and PM 13.5 SP)

– Available in LC version

Vehicle type

  • 2 Stabilizers STANDARD
  • 2 Stabilizers XL
  • 4 Stabilizers

Standard equipment

Manual pull-out outrigger booms

Manual pull-out outrigger booms

Safety Kit for outriggers

Safety Kit for outriggers

Proportional hydraulic control valve block

Proportional hydraulic control valve block

Regenerative valve

Regenerative valve

Rack

Rack

Double connecting rod

Double connecting rod

Multi-function radio control

Multi-function radio control

Optional

Jib

Jib

Hose reel

Hose reel

Hose racks

Hose racks

Air/oil heat exchanger

Air/oil heat exchanger

Hydraulic winch on jib

Hydraulic winch on jib

Hydraulic winch on crane

Hydraulic winch on crane

Tank

Tank

Manual extensions

Manual extensions

LMU CE control system for mechanical extensions

LMU CE control system for mechanical extensions

Electro-hydraulic slewing limiter

Electro-hydraulic slewing limiter

Hydraulic flip-up outriggers

Hydraulic flip-up outriggers

Hydraulic pull-out outrigger booms

Hydraulic pull-out outrigger booms

LC configuration

LC configuration

Safety Kit for outriggers

Safety Kit for outriggers

Slewing limiter valve kit

Slewing limiter valve kit

Slewing limitation with variable calibration

Slewing limitation with variable calibration
